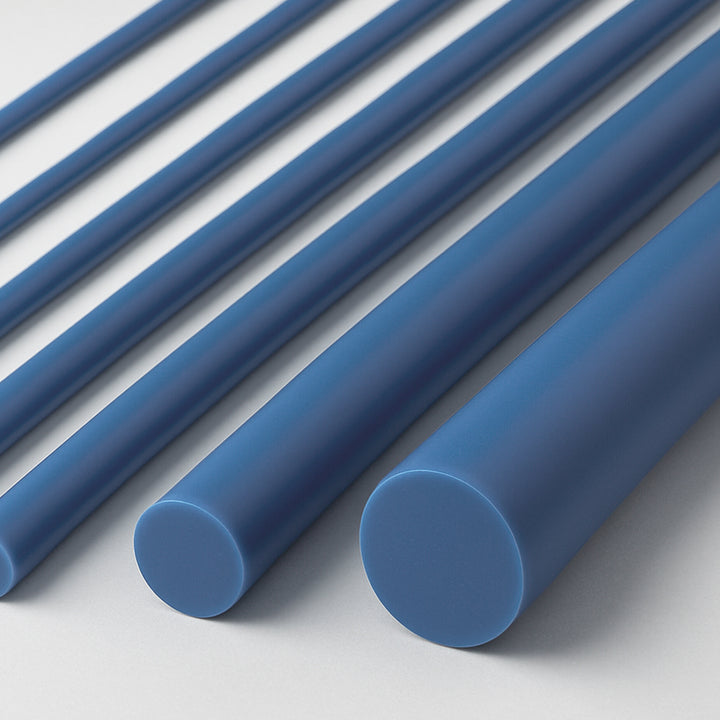

Silicone Cord - Metal Detectable
A widespread global concern is the risk of silicone particles from machinery contaminating products on the production line. This concern is widespread in manufacturing - particularly industries associated with food, drink and pharmaceuticals.
Metal detectable silicone rubber seals and gasket technology can quickly and efficiently be detected to prevent contamination. Will allow detection of any eroding particles entering the process line using in-line metal detection systems.
The production process can be stopped quickly, the contaminated products are segregated and the process line is maintained to rectify the problem. Therefore, the risk of production downtime and probability of waste being produced is greatly reduced.
Colours supplied in our metal detectable range are Blue and all fully compliant to FDA 177.2600 and EC1935/2004
If you require more information please contact our sales team on 01380 734510 or email us at sales@tym.co.uk.
The metal detectable range has been tested to and is in compliance with the American Food and Drugs Administration(FDA)21 CFR177-2600 & Directive EC 1935/2004.
These products meet the flammability requirements of FAR25/JAR 25/CS25 Appendix F, Part 1, (a)(1)(iv) and (a)(1)(v) horizontal flammability tests and Automotive Standard PART 571FMVSS302.
TEMPERATURE RANGE
-60°C (-76°F) to 200°C (392°F) and up to 250°C(482°F)intermittent
BASIC PHYSICAL PROPERTIES
| VALUE | UNITS | TEST METHOD | |
| Brittle Point | -80°C (-112 °F) | °C / °F | ASTM D746 |
| Limiting Oxygen Index | 24.0 | % | BS 2782 Part 1 |
| Thermal Conductivity | 0.24 |
W/m-°C |
VDE0304 |
| Radiation Resistance | >105 Grays (107 Rads)typical | - | - |
| Dielectric Strength | 23 | kV.mm-1 | VDE0303 |
| Dielectric Constant |
2.9 |
- | VDE0303 |
| Dissipation Factor | 3x10-4 | - | VDE0303 |
| Volume Resistivity | >3x1015 | Ω.cm | VDE0303 |
|
Durometer |
68 | ISO 48-4 (Shore A) | ASTM D2240 DIN ISO 7619-1 |
|
Elongation |
327 |
% |
ISO 37 type 1 ASTM D412 die C DIN 53504 type S1 |
|
Compression Set - 22 Hours @ 300° F |
11.0 |
% |
ISO 815, 22h @175°C |
|
Compression Set - 24 Hours |
11.2 | % | ISO 815, 24h @150°C |
| Magnetic Pull | 7.3 | mm | SEWI 700 |
EXTENDED PHYSICAL PROPERTIES
| VALUE | UNITS | TEST METHOD | |
| Tensile Strength | 8.42 |
MPa |
ISO 37 type 1 ASTM D412 die C DIN 53504 type S1 |
|
Tear Strength |
19.1 |
N/mm |
ASTM D624 Die B |
|
Colours |
Blue |
- |
Visual |
ENVIRONMENTAL RESISTANCE
Silicone rubber products have an excellent resistance to ozone, oxidation, ultraviolet light, corona discharge, cosmic radiation, ionising radiation and weathering in general.
Other grades of silicone rubber available are: Cellular silicone products, high temperature grades, high tear grades, flame retardant grades, low combustion hazard grades, metal detectable grades, custom compounds.
Buy our Silicone Cord 60 Shore in a range of sizes & specifications.
| Diameter |
1.50mm, 2.00mm, 3.00mm, 4.00mm, 5.00mm, 6.00mm, 7.00mm, 8.00mm, 10.00mm, 12.00mm |
|---|---|
| Length |
10.00MTRS |
