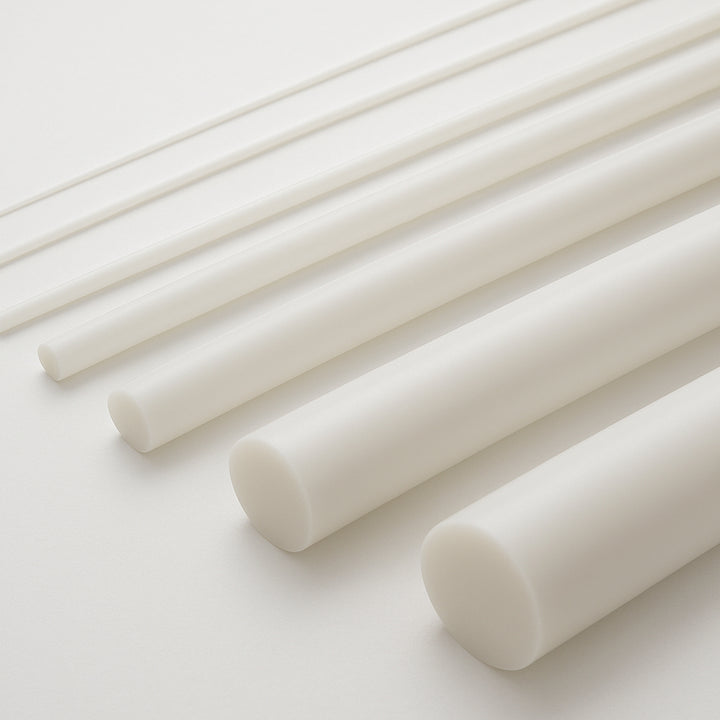

Silicone Cord 60 Shore - FDA & WRC Approved
Silicone cord is a flexible, durable, and temperature-resistant rubber product designed for sealing, gasketing, and insulation applications. Made from high-grade silicone rubber, it offers excellent resistance to extreme temperatures, UV, ozone, moisture, and chemicals.
Its smooth, non-toxic, and non-reactive surface makes it suitable for both industrial and food-grade uses, with outstanding electrical insulation and weathering properties. Silicone cord is easy to cut, join, and bond, making it highly versatile for custom O-rings, sealing profiles, and cushioning components.
Key Features:
- Wide operating temperature range (typically -60°C to +200°C, depending on grade)
- Excellent UV, ozone, and weather resistance
- Flexible and compressible for effective sealing
- Available in various diameters, densities, and hardness (shore A)
- Suitable for FDA-approved and medical-grade applications (on request)
- Easy to cut and join into custom seals or gaskets
Applications:
- Custom O-ring and gasket fabrication
- Food and beverage processing equipment
- Electrical insulation and protective covers
- Aerospace, automotive, and marine industries
- General sealing and cushioning applications
TEMPERATURE RANGE
-60°C (-76°F) to 200°C (392°F) and up to 250°C(482°F)intermittent
BASIC PHYSICAL PROPERTIES
| VALUE | UNITS | TEST METHOD | |
|
Density at 20 °C |
1,15 |
g/cm³ |
ISO 1183-1 A |
|
Durometer |
61 | ISO 48-4 (Shore A) | DIN 53505 |
|
Elongation |
440 |
% |
ASTM D 624 B |
|
Compression Set - 22 Hours @ 300° F |
31 |
% |
DIN ISO 815-B (22 h / 175 °C) |
|
Rebound Resilience |
57 | % |
DIN 53512 |
EXTENDED PHYSICAL PROPERTIES
| VALUE | UNITS | TEST METHOD | |
| Tensile Strength | 11 |
N/mm2 |
DIN 53504 S1 / ISO 37 |
|
Tear Strength |
24 |
N/mm |
ASTM D 624 B |
|
Colours |
Translucent, Red Iron Oxide (RIO), Black, White, Blue |
- |
Visual |
ENVIRONMENTAL RESISTANCE
Silicone rubber products have an excellent resistance to ozone, oxidation, ultraviolet light, corona discharge, cosmic radiation, ionising radiation and weathering in general.
Other grades of silicone rubber available are: Cellular silicone products, high temperature grades, high tear grades, flame retardant grades, low combustion hazard grades, metal detectable grades, custom compounds.
Buy our Silicone Cord 60 Shore in a range of sizes & specifications.
| DIAMETER |
1.5MM, 2MM, 2.5MM, 2.8MM, 3MM, 3.2MM, 3.5MM, 4MM, 4.5MM, 5MM, 5.3MM, 5.7MM, 6MM, 6.35MM, 6.5MM, 6.75MM, 7MM, 8MM, 8.4MM, 9MM, 9.5MM, 10MM, 11MM, 12MM, 12.7MM, 14.3MM, 15MM, 16MM, 19MM, 20MM, 25MM |
|---|---|
| LENGTH |
10 MTRS |
