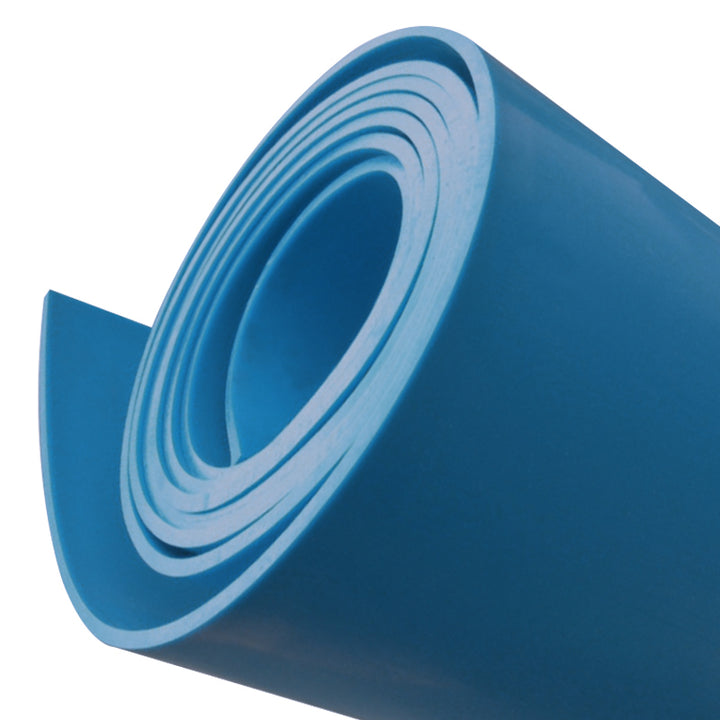

FDA Blue Nitrile Rubber Sheet
Blue Food Quality Nitrile Rubber 60° shore is a Blue FDA approved Nitrile Rubber sheet for use with food and drink stuffs. Nitrile material is for use at higher temperatures for media containing oils, fats and greases. Blue in colour to meet the now more common demands of the food industry.
Approved to: US FDA 21 CFR177,2600 – EU1935/2004 and USP Class V1 Compliant.
TYM's Sheeting can be supplied plain or with self adhesive backing (SAB). Rubber Strip to bespoke sizes are available along with customised sheets/gaskets. Please contact us if you require custom products.
The sheeting is manufactured from top quality virgin materials and ingredients meeting high standard of performance.
Material Profile: (see below)
Thickness: 1.5mm to 3mm
Sheet Size: 1.4m wide in 10m rolls
Finish: Smooth finish
Cutting: Standard press-tools
The component parts used and maximum levels in compound mixtures are in accordance with FDA [Food & Drug Administration – Department of Health and Human Services] part 177 – indirect food additives section 177.2600 – rubber articles for repeated use.
This Product is REACH, RoHS, PAH and CE Compliant.
Other grades, colours and finishes are available – subject to minimum batch quantities.
TEMPERATURE RANGE
-25°C to 110°C
BASIC PHYSICAL PROPERTIES
| VALUE | UNITS | TEST METHOD | |
| Specific Gravity |
1.40 ± 0.05 |
- |
ASTM D297 |
|
Durometer |
60 ± 5 |
Shore A | ASTM D2240 |
|
Elongation |
350 |
% |
ASTM D412 |
|
Compression Set - (70 ºC/24 hrs/25% set) (max) |
40 |
% |
ASTM D395 METHOD B |
EXTENDED PHYSICAL PROPERTIES
| VALUE | UNITS | TEST METHOD | |
| Tensile Strength |
60 |
KG/CM2 |
DIN 53504 |
|
Tear Resistance |
20 |
KG/CM |
DIN 53515 |
|
Colour |
RAL 5012 Blue |
- |
Visual |
CHEMICAL RESISTANCE
Brine, Calcium Chloride, Carbon Dioxide, Carbon Monoxide, Castor Oil, Corn Oil, Crude Oil, Diesel Oil, Fatty Acids, Gasoline, Glucose, Grease, Heptane, Hydraulic Fluid, Hydrogen Gas, Hydrogen Sulphide, Jet Fuels, Kerosene, Lard, Lime, Linoleic Acid, Linseed Oil, LPG, Lubricating Oils, Mineral Oil, Natural Gas, Neon Gas, Nitrogen, Oil Petroleum, Oleic Acid, Paraffin Wax, Pentane, Petroleum Oils, Pine Oil, Propane, Sea Water, Sewage, Steam, Sulfuric Acid, Toluene, Transformer Oil, Urea, Varnish.
Buy our Nitrile Sheet in a range of sizes & specifications.
| THICKNESS |
1.5 MM, 3 MM |
|---|---|
| LENGTH |
0.5 MTRS, 1 MTR |
| WIDTH |
1.4 MTRS |
