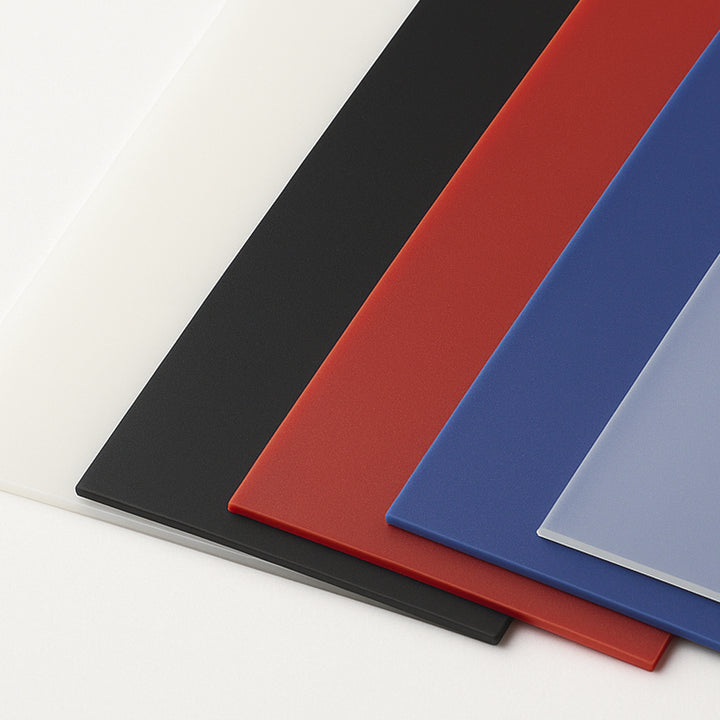

Silicone Sheet 60 Shore - FDA & WRC Approved - 200mm Square
Silicone rubbers are rubber compounds with both organic and inorganic properties, as well as highly pure fumed silica as two main components. They possess many characteristics which are not present in other organic rubbers and have important roles in numerous industries, such as electrical, electronics, automobiles, food, medical, household appliances and leisure products.
TYM's 60 Shore Silicone 200mm Sheet comes in 1mm thick.
Colours supplied in our general purpose range are: Red Oxide, Blue, White, Trans and Black, all fully compliant to FDA 177.2600 and EC1935/2004
Our sheet can be supplied off the roll or as strips, seals, gaskets, washers and fabricated products.
If you require more information please contact our sales team on 01380 734510 or email us at sales@tym.co.uk.
ALL our colour range contain only ingredients that are listed by the American Food and Drug Administration (FDA) under the 21 CFR number 177-2600, BFR XV Empfehlung and colour bleed test according to BFR Empfehlung part B 11 & Directive EC 1935/2004. Translucent,Blue,White,R/Oxide and Black have been approved by WRAS for use with potable water at temperatures up to 85c, the listing number is 1310541 The material is according to REACH and RoSH.
SILICONE SHEET 60 SHORE A
| BASIC PHYSICAL PROPERTIES | VALUE | UNITS | TEST METHOD |
| Thermal Conductivity | 0.24 |
W/m-°C |
ASTM C 518 |
|
Durometer |
60 | ISO 48-4 (Shore A) | - |
|
Elongation |
400 |
% |
ISO 37 Type 2 |
|
Compression Set - 22 Hours @ 300° F |
10 |
% |
ISO 815, 22h @175°C |
|
Compression Set - 24 Hours |
13 | % | ISO 815, 24h @150°C |
EXTENDED PHYSICAL PROPERTIES
| VALUE | UNITS | TEST METHOD | |
| Tensile Strength | 10 |
MPa |
ISO 37 Type 2 |
|
Tear Strength |
22 |
N/mm |
ASTM D624 Die B |
|
Colours |
Translucent, Red Iron Oxide (RIO), Black, White, Blue |
- |
Visual |
ENVIRONMENTAL RESISTANCE
Silicone rubber products have an excellent resistance to ozone, oxidation, ultraviolet light, corona discharge, cosmic radiation, ionising radiation and weathering in general.
Other grades of silicone rubber available are: Cellular silicone products, high temperature grades, high tear grades, flame retardant grades, low combustion hazard grades, metal detectable grades, custom compounds.
Buy our Silicone Sheet 60 Shore in a range of sizes & specifications.
| COLOUR & HARDNESS |
WHITE 60, RED OXIDE 60, BLUE 60, BLACK 60, TRANS 60, OFF WHITE 60 270-300c, BLUE METAL DETECTABLE 60, TRANS PLATINUM 60, RED OXIDE REINFORCED 60, GREEN 60, WHITE 40 |
|---|---|
| SHEET SIZE |
200MM x 200MM |
| Thickness |
0.5MM, 1.0MM, 1.5MM, 2.0MM, 3.0MM, 4.0MM, 5.0MM, 6.0MM, 8.0MM, 10.0MM, 1MM |
